Custom CPU Architecture
CPU design made in circutverse.
Made in 2025
Background
I was watching some ben-eater videos and I was inspired to make my own cpu design. The CPU only has 2 registers, and can only run primitive math and a few logic operations. I intentionally made it simple so I could fit the opcodes onto 9 bits, and to reduce complexity. If you want more details read my instruction set document.

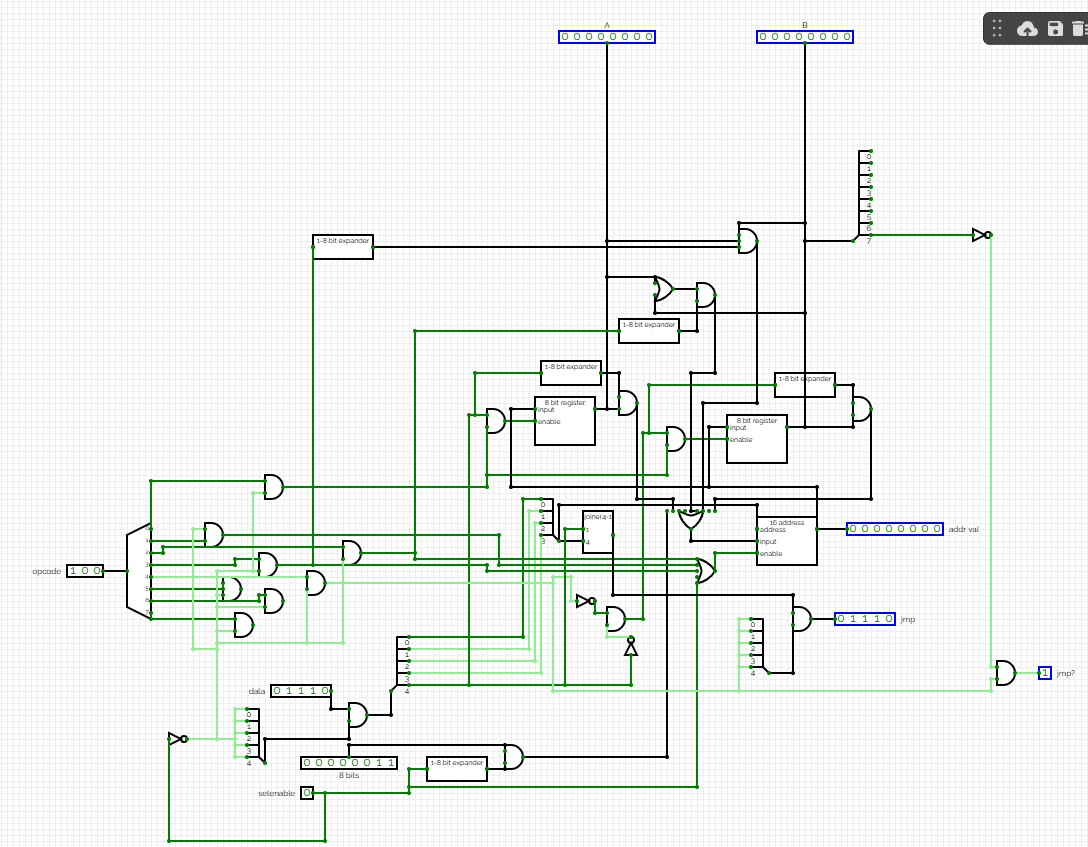

Design Image
